C Purlin Roll Forming Machine

C Purlin Roll Forming Machine


As a basic type of roll tile machine, C purlin roll forming machine, also known as C shape purlin forming machine, produces C purlin steel through cold rolling.
The formed C purlin steels possess metal of thin thickness, light weight, excellent section performance and high strength. Compared with the traditional channel steel, C purlin steel with the same strength can save 30% raw material. They are widely used as purlin and beam in steel structure building. In addition, they also can be used in mechanical light industries for manufacturing columns, beams, arms, etc.

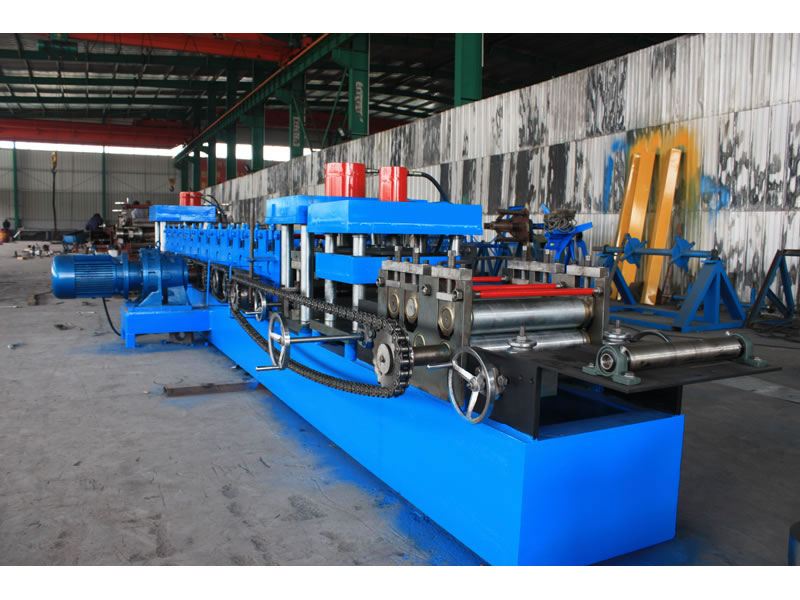

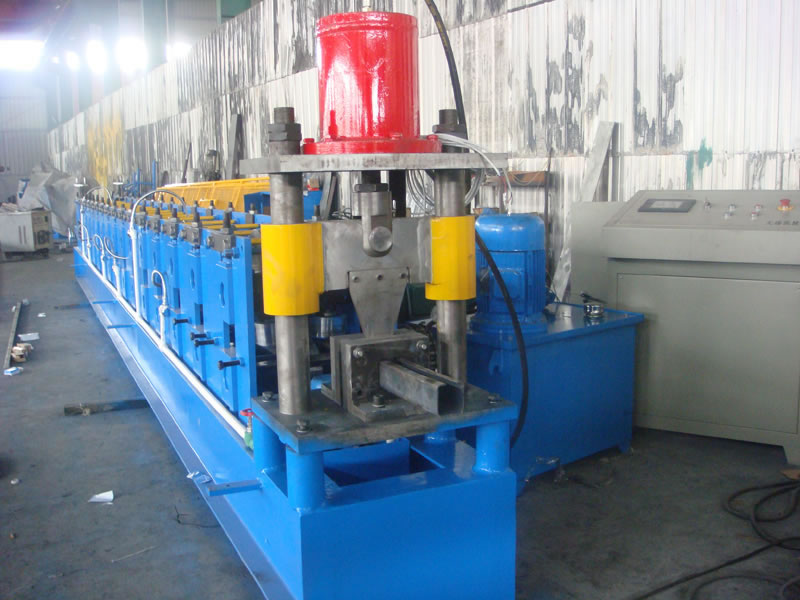

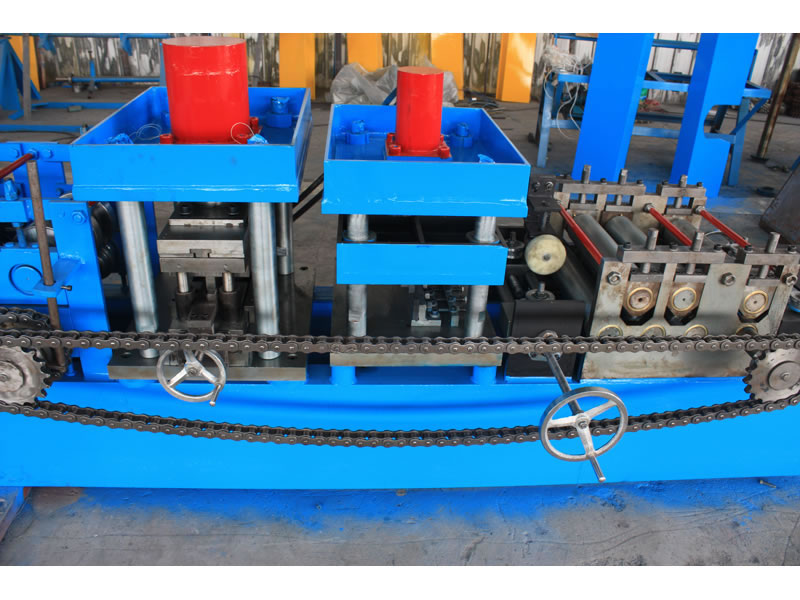

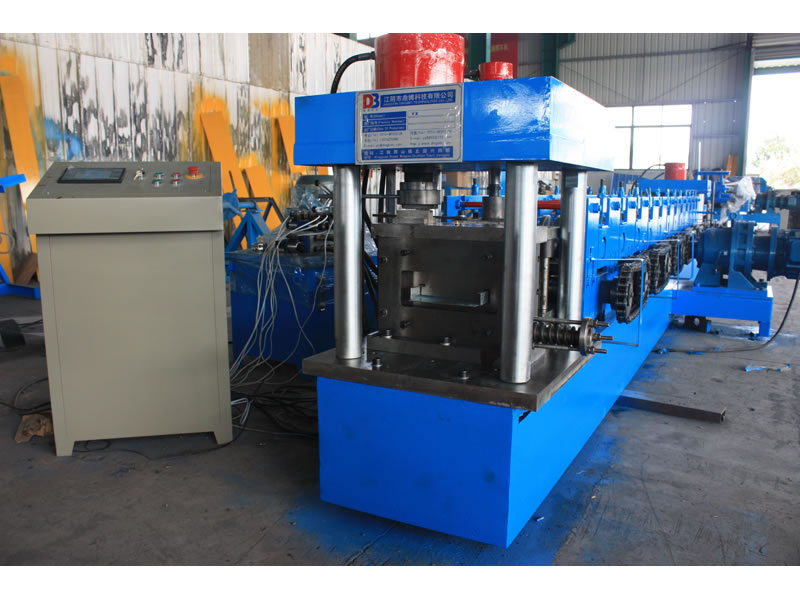

C purlin roll forming machine is consisted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter.

Operation and Maintenance:

1. With high performance in operation, C purlin roll forming machine has little noise;
2. C purlin roll forming machine, totally controlled by PLC, is fairly easy to operate. What the user only needs to do is inputting the number of products, length and punching dimension, and other related production data;
3. If users want to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
4. Regular lubrication for chain wheel, bearing and speed reducer of C shape purlin forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters C Purlin Roll Forming Machine:

Suitable to process Colored steel plate, galvanized board
Width of the plate 80-200mm (valid)
Rollers 12 groups
Rolling material Gcr15 bearing steel (quenched within 58℃-62℃)
Rolling galvanization thickness 2.0-3.0mm
Material of the cutting blade Cr12mov
Dimensions Approx 10m×1.2m×1.5m
Power 7.5kw
Thickness of the plate 2.0-3.0mm
Productivity 3-6m/min
Diameter of the roller 80mm
Weight About 8T
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:

We deliver C shape purlin forming machines by sea shipping in container and nude packing.
As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides C purlin roll forming machine, we also professionally output Z purlin roll forming machine, C-Z quick change forming machine, U purlin roll forming machine and W purlin roll forming machine. Our C shape purlin forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
