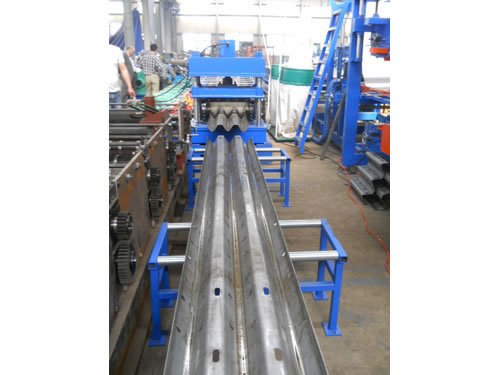

W Beam Roll Forming Machine

W Beam Roll Forming Machine

Description:

W beam roll forming machine, also known as crash barrier forming machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.

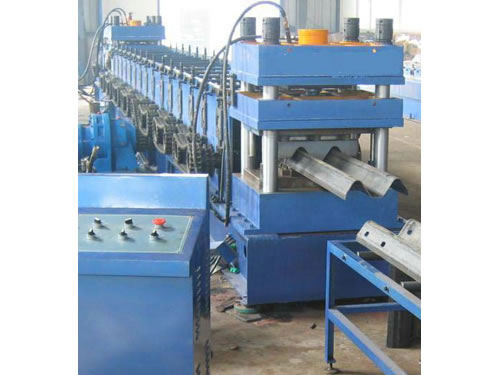

W beam roll forming machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Operation and Maintenance:

1. W beam roll forming machine totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of crash barrier forming machines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, This roll forming machine has little noise.

Parameters of W Beam Roll Forming Machine:

Raw material Q235
Yield strength 235Mpa
Material thickness 3-4mm
Material width <500mm
Coil ID Ф508±20mm
Coil OD ≤Ф1200mm
Coil capacity ≤5T
Production speed 3-10M/MIN
Length tolerance ±2mm
Power 380V±10%, 50-60HZ
Total power 90 KW

Packaging and Transportation:

We deliver W beam roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of roll forming machines in China. As an ISO 9001:2000 Quality Control System certified company, our company has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides W beam roll forming machine, we also professionally produce guardrail roll forming machine, three wave guardrail roll forming machine and column roll forming machine. Our crash barrier forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
