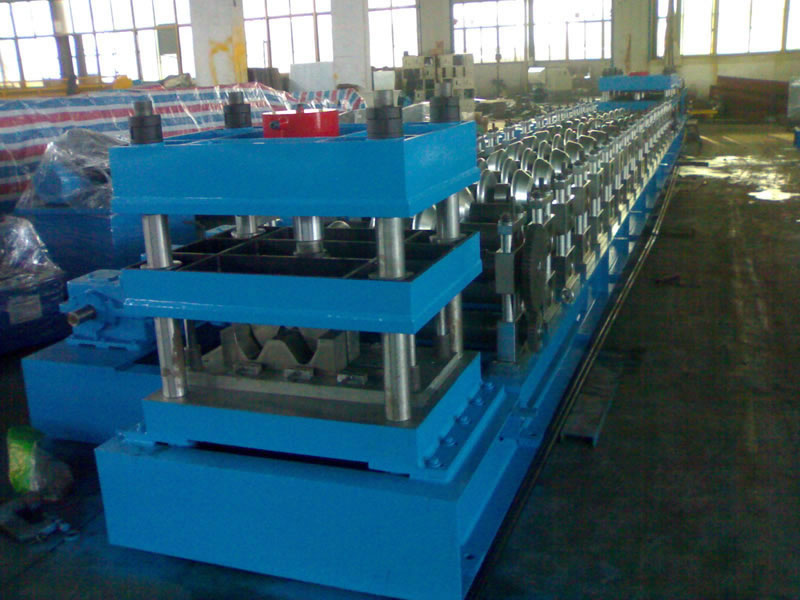

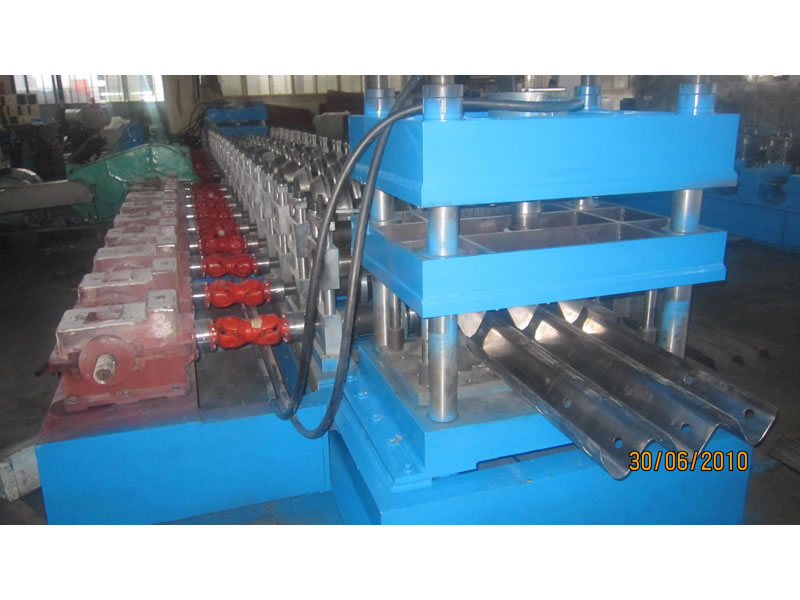

Three Wave Guardrail Roll Forming Machine

Three Wave Guardrail Roll Forming Machine

Description:

Three wave guardrail roll forming machine or expressway guardrail forming machine is used for producing three waves shaped guardrail. It possesses good features of high corrosion resistance, high aging resistance, elegant appearance and easy installation.
Three wave guardrail roll forming machine is mainly constituted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.

Operation and Maintenance:

1. Three wave guardrails roll forming machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of expressway guardrail forming machines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, three wave guardrail roll forming machine has little noise.

Parameters:

Suitable to process Colored steel plate, galvanized board
Valid width 247mm
Rollers 15 groups
Rolling material Cr15 bearing steel
Rolling galvanization thickness 3-4.5mm
Material of the cutting blade Cr12mov
Dimensions Approx 10m×1.2m×1.5m
Power 37kw
Thickness of the plate 3-4.5mm
Productivity 12m/min
Diameter of the roller 100mm
Weight About 10T
Voltage 380V 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:

We deliver three wave guardrail roll forming machines by sea shipping in container and nude packing.

Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of guardrail roll forming machines in China. As an ISO 9001:2000 Quality Control System certified company, our company has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides three wave guardrail roll forming machine, we also professionally produce guardrail roll forming machine, W beam roll forming machine and column roll forming machine. Our crash barrier forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
