W Purlin Roll Forming Machine

W Purlin Roll Forming Machine


With W shaped section of roll forming mold, the W purlin roll forming machine could automatically and perfectly punch or cut purlines in fixed size and length. The purlins output from W shape purlin forming machine possess good features of high bending resistance, high pressing resistance and high level flatness. They are mainly used as materials for large and medium industrial as well as civil architecture.

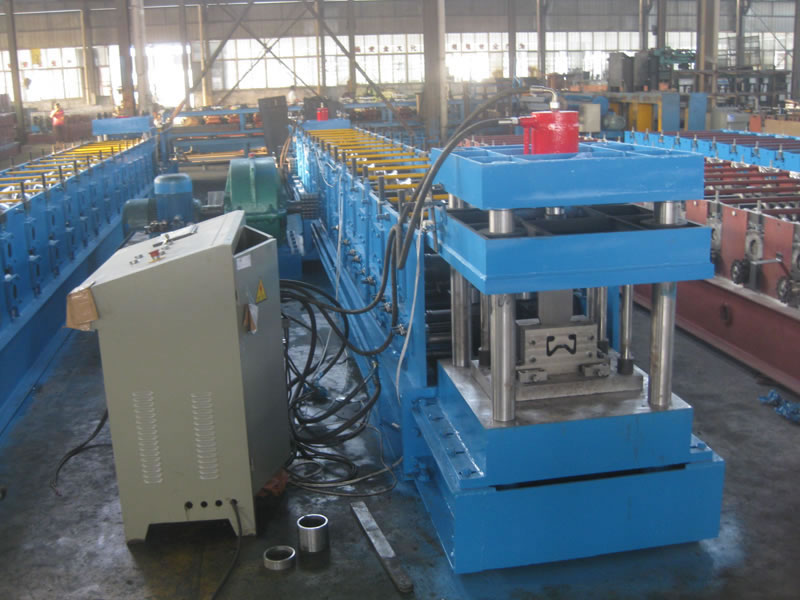

W purlin roll forming machine is mainly constituted of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. The machine performs very well and can be debugged with little noise.

Operation and Maintenance:

1.W purlin roll forming machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2.If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3.Regular lubrication for chain wheel, bearing and speed reducer of W shape purlin forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters of W Purlin Roll Forming Machine:

Standing Roller station 12 stations
Size of machine Approx 6000mm×800mm×1200mm
Working speed 12--18m/min
Shaft diameter 60mm
Way of cutting Hydraulic cutting
Cutting blade material Cr12
Sheet thickness 0.3mm--0.6mm (normal steel)

W purlin roll forming machine can produce variety kinds of profiles and cold rolled steels with regular thickness.

Packaging and Transportation:

We deliver W purlin roll forming machines by sea shipping in container and nude packing.
As an ISO 9001:2000 Quality Control System certified company, Jiangyin Dingbo Technology Co., Ltd. has strong production ability, powerful technical support, strict quality inspection as well as advanced management experience. Besides W purlin roll forming machines, we also professionally output C purlin roll forming machine, Z purlin roll forming machine, C-Z quick change forming machine and. U purlin roll forming machine. Our W shape purlin forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
