Steel Tile Roll Forming Machine

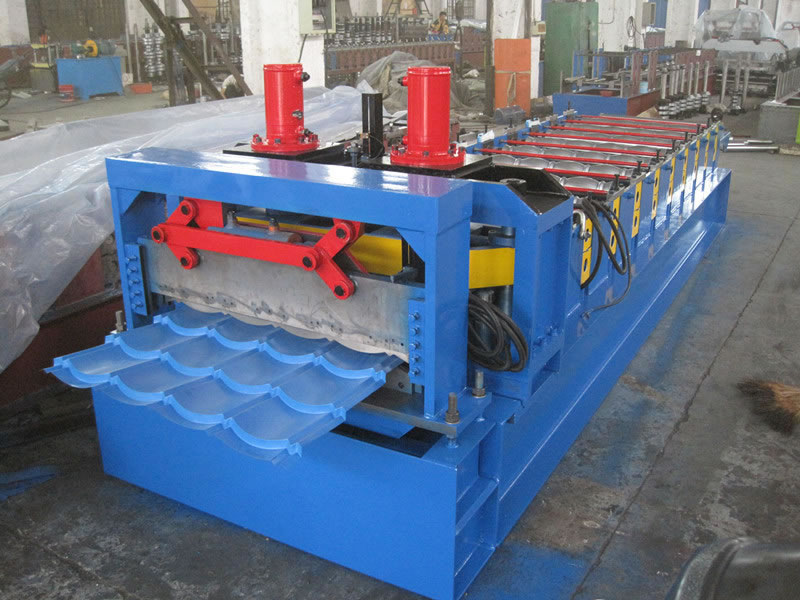

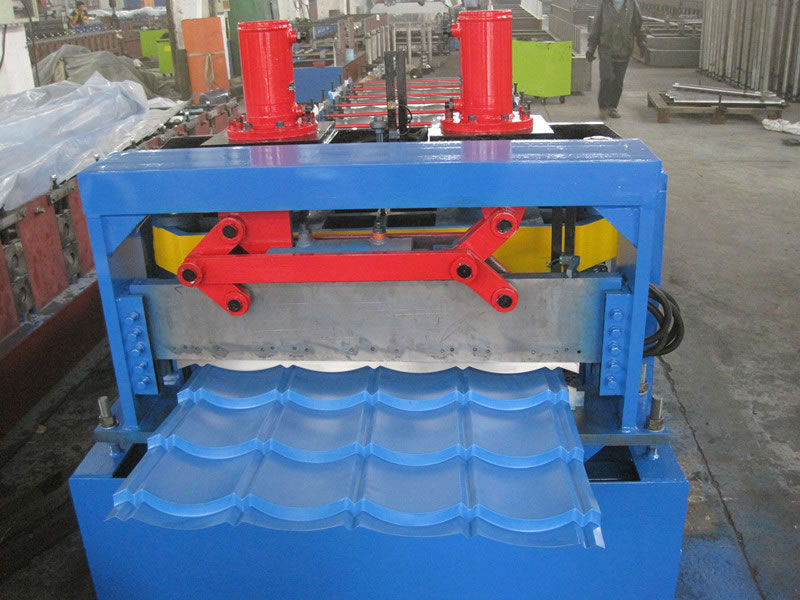

Steel Tile Roll Forming Machine


Steel tile roll forming machine namely tile roll forming line, can be used for manufacturing colored steel roof tile through the processes of decoiling, roll forming, profiling and cutting, etc. Thanks to the rational forming, steel tiles are of high strength and favorable appearance. They are suitable for modern architecture roofing.
Steel tile roll forming machine is mainly constituted of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station and computer control system.

Operation and Maintenance:

1. Steel tile roll forming machines, totally controlled by PLC, are fairly easy to operate. They can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of tile roll forming lines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, steel tile roll forming machines have little noise.


Suitable to process Colored steel plate, galvanized board
Width of the plate 1250mm
Rollers 18 groups
Rolling material Forging steel 45#
Rolling galvanization thickness 0.3-0.8mm
Material of the cutting blade Cr12mov
Dimensions Approx 9m×1.8m×1.5m
Power 5.5kw
Thickness of the plate 0.3-0.8mm
Productivity 10-15 m/min
Diameter of the roller 76mm
Weight About 7T
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:

We deliver steel tile roll forming machines by sea shipping in container and nude packing.
Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also professionally provides customers with glazed tile roll forming machine and cap ridge roll forming machine. Our tile roll forming lines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
