Glazed Tile Roll Forming Machine

Glazed Tile Roll Forming Machine

Description:

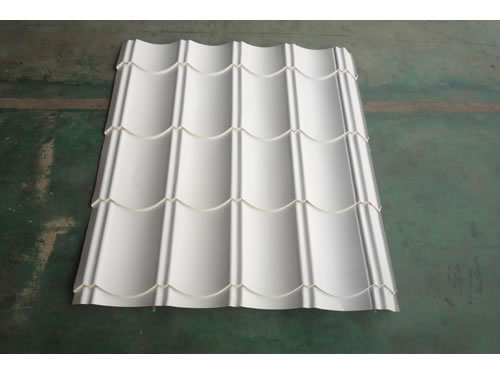

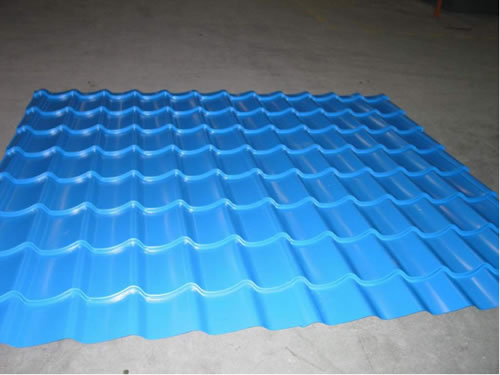

Glazed tile roll forming machine, also referred to as glazed steel roll former, is applied in producing glazed tiles with beautiful appearance, tidy ripple and durable service life. While the glazed tiles can be widely used for building different architectures, such as villa, holiday village, gardening style factory, beauty spot, pavilion, exhibition center and so on.

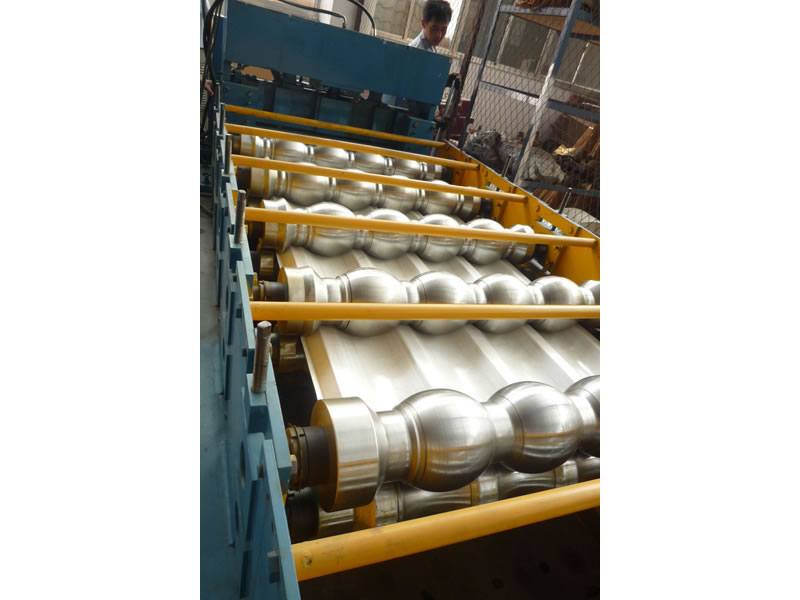

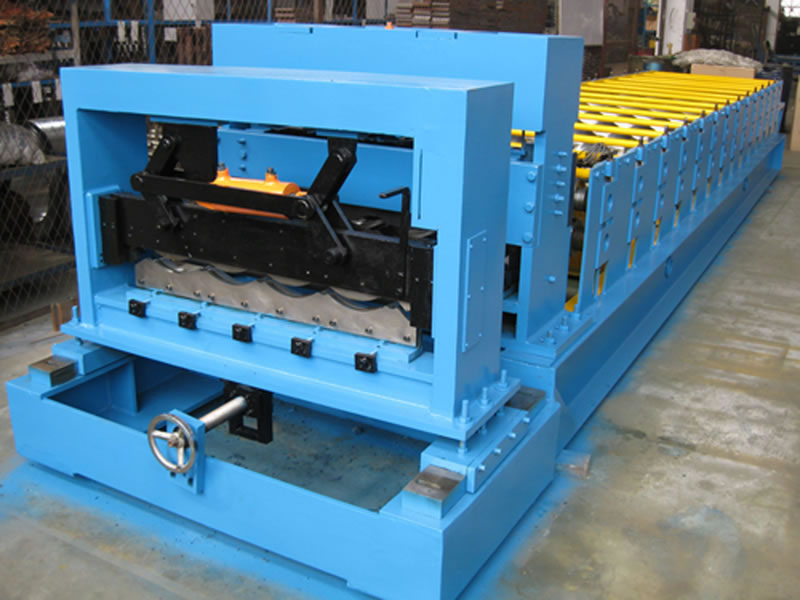

Glazed tile roll forming machine is mainly composed of automatic discharge table, feed leading table, main forming machine, cutting device, hydraulic station, computer control system and product bracket, etc.

Operation and Maintenance:

1. Glazed tile roll forming machines, totally controlled by PLC, are fairly easy to operate. They can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of glazed steel tile forming machines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, glazed tile roll forming machines have little noise.

Parameters ofGlazed Tile Roll Forming Machine:

Coil dimension (mm) 1250×(0.4-0.6)×L'
Yield strength ≤ 250MPa
Working speed 2.0-4.0m/min
Roller material #45 forge steel plated with hard chromium
Shaft material #45 forge steel after tempering
Main power 5.5Kw
Hydraulic motor power 11Kw
Hydraulic station pressure 10~12M pa
Control system PLC
Dimension(mm) 6500×1700×1400

Packaging and Transportation:

We deliver glazed tile roll forming machines by sea shipping in container and nude packing.
Jiangyin Dingbo Technology Co., Ltd. is a leading manufacturer and supplier of glazed tile roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also professionally provides customers with steel tile roll forming machine and cap ridge roll forming machine. Our glazed steel tile forming machines can be provided to customers from India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
