Trapezoid Roof Roll Forming Machine

Trapezoid Roof Roll Forming Machine

Description:

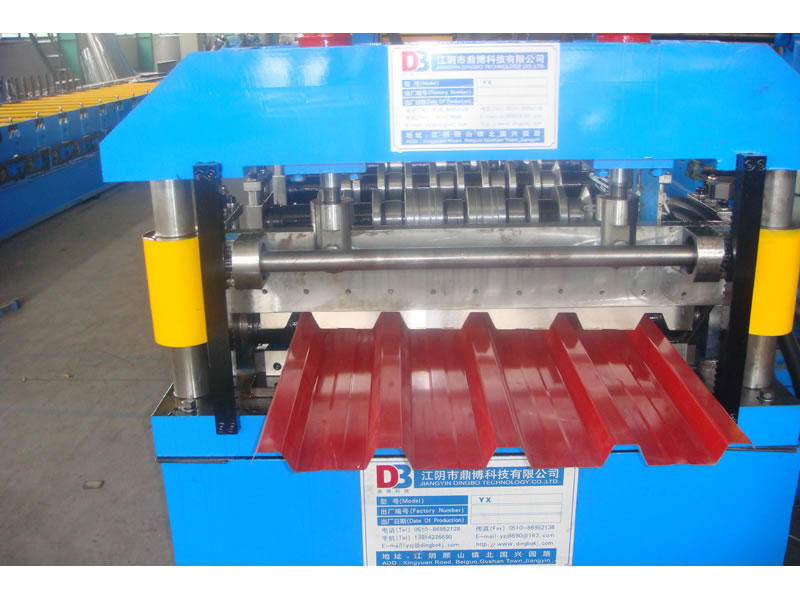

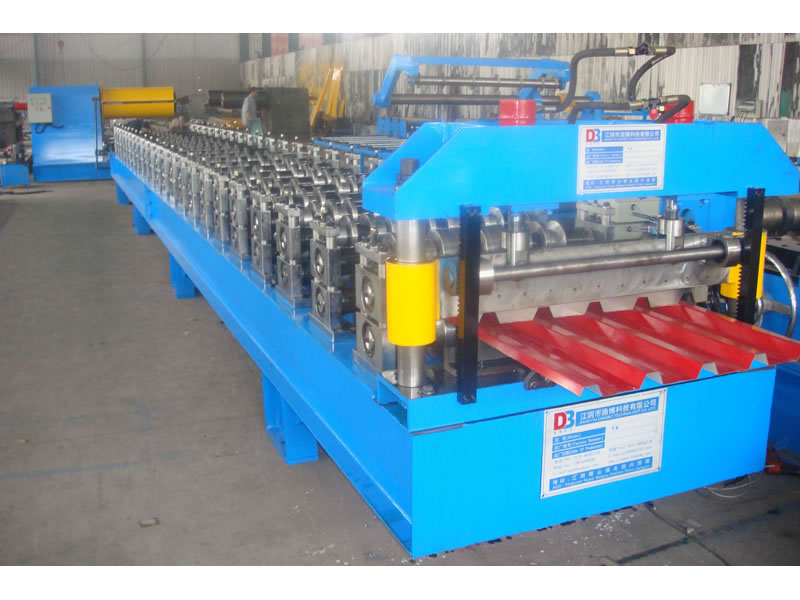

Trapezoid roof roll forming machine also known as roof &wall panel roll former machine, is used for producing wall panel and roof. It could make steel sheets into required shapes and length. Metal trapezoidal roof is widely applied in commercial metal buildings and housing. Trapezoid roof roll forming machine features good appearance, high coverage, high strength and high automation. At the meantime, it has lower cost and longer lifetime. With good performance in operation, it works with little noise and is easy to maintain.
The wall panel roller former is mainly composed of decoiler, roll former, cutting machine, PLC computer, hydraulic system and output table.

Operation and Maintenance:

1.Trapezoid roof roll forming machine is totally controlled by PLC. Thus the machine is easy to operate. What the user only needs to do is inputting related production data, like the number of products, length and punching dimension, etc;
2.If users want to adjust the machine or something else, they have to stop the machine first before carrying out relevant operation;
3.Regular lubrication for chain wheel, bearing and speed reducer of the trapezoid roof roll forming machine should be conducted carefully. And the forming rollers should be kept clean.

Parameters:

Suitable to process colored steel plate, galvanized board
Width of the plate 1250mm
Rollers 18 groups
Rolling material Forging steel 45#
Rolling galvanization thickness 0.3-0.8mm
Material of the cutting blade Cr12mov
Dimensions Approx 9m×1.8m×1.5m
Power 5.5kw
Thickness of the plate 0.3-0.8mm
productivity 10m-15m/min
Diameter of the roller 76mm
Weight About 7T
Voltage 380V, 50Hz
Processing precision Within 1.00mm

Packaging and Transportation:

We deliver trapezoid roof roll forming machines by sea shipping in container and nude packing.
Founded in 2009, Jiangyin Dingbo Technology Co., Ltd. is a professional manufacturer and supplier of roll forming machines in China. With 500,000 RMB registered capital and rich experience in steel structure industry, our company also supplies corrugated roll forming machine, double layer roll forming machine and IBR roll forming machine. Our trapezoid roof roll forming machines can be provided to customers around the world, including India, Iran, UAE, Bahrain, Yemen, Libya, Brail, Zambia, South Africa, Saudi Arabia and some other countries and areas.
